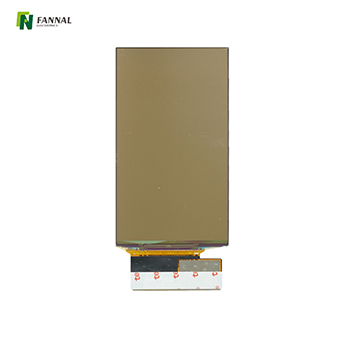

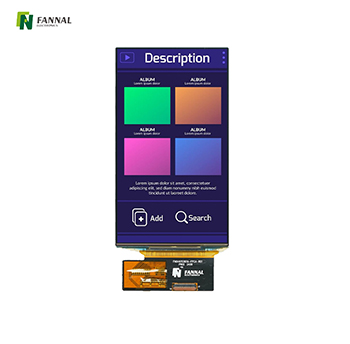

4.97英寸工业AMOLED显示屏 720*1280 350亮度 39PINS MIPI

特点介绍:

主要参数:

接口及电气特性:

接口:

Pin No.	Symbol	I/O	Description
1	VPP	P	MTP OLED.
2	GND	P	Ground.
3	SWIRE	IO	Power IC control pin.
4	D3N	I	MIPI DSI Negative differential data signal.
5	OLED_EN	O	Power IC enable control pin(Note:"H"=VDD level, "L"=VSSI level.
6	D3P	I	MIPI DSI Positive differential data signal.
7	PCD(NC)	-	No connection.
8	GND	P	Ground.
9	ERR_FLAG(NC)	-	No connection.
10	D0N	I	MIPI DSI Negative differential data signal.
11	RESET	I	Reset signal input.
12	D0P	I	MIPI DSI Positive differential data signal.
13	VDDIO	P	Driver IC regulator power supply.
14	GND	P	Ground.
15	VSP	P	Input anode voltage from the set-up circuit.
16	CLKN	I	MIPI DSI Negative clock signal.
17	VCI	P	Supply analog voltage.
18	CLKP	I	MIPI DSI Positive clock signal.
19	TSP_ATTN(NC)	-	No connection.
20	GND	P	Ground.
21	TSP_SDA(NC)	-	No connection.
22	D1N	I	MIPI DSI Negative differential data signal.
23	TSP_SCL(NC)	-	No connection.
24	D1P	I	MIPI DSI Positive differential data signal.
25	TSP_RESET(NC)	-	No connection.
26	GND	P	Ground.
27	NC	-	No connection.
28	D2N	I	MIPI DSI Negative differential data signal.
29	TSP_3.3V(NC)	-	No connection.
30	D2P	I	MIPI DSI Positive differential data signal.
31	VDDIO	P	Driver IC regulator power supply.
32	GND	P	Ground.
33	GND	P	Ground.
34	ELVSS	P	Negative power supply for panel.
35	ELVDD	P	Positive power supply for panel.
36	ELVSS	P	Negative power supply for panel.
37	ELVDD	P	Positive power supply for panel.
38	ELVSS	P	Negative power supply for panel.
39	ELVDD	P	Positive power supply for panel.

电气特性:
